Silent Gensets

Silent Gensets

Manufactured by: Ashok Leyland Ltd.

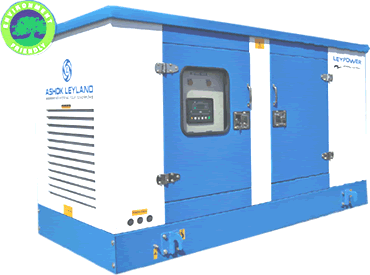

The Ashok Leyland Ltd. LEYPOWER Ready-To-Use diesel generating sets are offered in the range 10 to 500 KVA. The aesthetically designed, silent DG sets meet with the latest CPCB norms and are powered by the compact Ashok Leyland Ltd. series of diesel engines, trouble free performance, ensuring minimum maintenance and low operating costs.

 Power Source  RTU (Ready To Use) DG set unit  COMAP Controller (IL-AMF25)
 Acoustic Enclosures  AMF control panel (Optional)  Deep Sea Controller DSE (6020)
Power Source

The Ashok Leyland Ltd. Series of genset engines meet the latest CPCB emission norms, are environment friendly and designed to      work under arduous conditions.

The sturdy, 4 & 6, cylinder, in-line, water cooled four stroke Ashok Leyland Ltd. range of diesel engines yield continuous power,      enabling the generator to operate round the clock, continually at 100% load.

The inherent construction design of the engines ensures easy serviceability, accessibility and maintenance, even inside an acoustic      enclosure.

Minimum vibration and less noise level.

Highly rugged and reliable engine.

Acoustic Enclosures

The acoustic have been manufactured with specially procured CRCA sheet and using CNC machines for obtaining precision finish.

Powder coated, Foam type, Rockwool type acoustics are available


R T U (Ready To Use) DG set unit

Powered with AL Make engine coupled with Single bearing Brushless Alternator

Equipped with Standard safety feature like LLOP,HWT, Emergency Stop

Standard Manual Control Panel

Residential sliencer, suitable battery with cable, inbuilt diesel tank - optional

AMF control panel (Optional)

Consists of a microprocessor based AMF Control unit, which can operate on Auto, as well as Manual mode. It monitors the engine      safety parameters and alarm/trip conditions will be displayed on the front panel

Special alarm conditions include LLOP, HWT, overload, under/over speed, low fuel level. The controller comes with an inbuilt LVM     amd the parameters can be programmed to meet specific customer requirements.

The specific indication includes various conditions of operation such as Load on mains, Load on DG, Mains Healthy, DG On, Auto &      manual mode

The control panel consists of a multi function meter which displays AC current/Voltage, Frequency, Power factor, Kilowatt Hour

The generator set can also be supplied with a standard control panel to operate in manual mode


COMAP Controller (IL-AMF25)

Automatic or Manual start/stop

Push Button for simple control, lamp test

Graphic back-lit LCD display 128 x 64 Pixels - 6 LED indicator

Parameters adujstable via keyboard or PC, RS232 Interface

Mains measurements (50/60Hz): V1-V3, Hz

Generator measurements (50/60 Hz) V1-V3, I1-13, Hz, kW, kVAr, kWh

3 phase Generator protections - Over/under voltage & Frequency, Over current/Overload

Battery voltage, engine speed (pick-up) measurement

Warm-up and cooling functions

Generator C.B and Mains C B control with feedback and return timer

3 phase AMF function - Over/Under Frequency & Voltage

IP Protection: IP 65

Extension units (peripherals) - Remote annuciator, IG-IOM/ISG-PTM:I/O extension module

Modern communication support (optional)


Deep Sea Controller DSE (6020)

Back - lit icon LCD display

LED & LCD Alarm indication

Power Save mode

PC & Front panel configuration

Configurable timer and alarm

Event log (5)

Remote start input

Generator Measurement - 3 Phase

Main Measurement - 3 Phase

Hour Counter

Multiple engine parameter are monitored

Low power consumption

Dimension: 215 x 158 x 42 (mm x mm x mm)

Mains / Generator Voltage Range: 15 V - 333V (L-N)

6 outputs - Fuel, Start, 4 auxilary

Frequency range : 3.5 Hz to 75 Hz

Temperature Range: -30*C to +70*C

Manufactured by:
For over six decades, Hinduja Group flagship Ashok Leyland Ltd. has been a major presence in India's Commercial Vehicle Industry.
The Company's product range spans from 2.5 T GVW TO 49 T GTW in goods transport from 18 seaters to 80 seaters in passenger transport and a host of special application vehicles and diesel engines for industrial, marine and genset applications.

With a comprehensive R&D base complemented by collaborations with global technolgy leaders, Ashok Leyland Ltd. has established a tradition of technological leadership and a strong reputation for product reliablity. With seven manufacturing locations at Chennai, Hosur(three plants), Alwar(Rajasthan), Bhandara (Maharashtra) and Pantnagar (Uttarakhand) the Company has an annual production capacity of 150,000 vehicles and is the first automobile company in India to receive the renowned ISO / TS 16949 Corporate Clarification.

Authorised Dealer for CPCB approved,Fuel Efficient, Leypower Silent Gensets manufactured by Ashok Leyland Ltd.

Wide range of Gensets from 10KVA to 2000 KVA

All Gensets assembled in Ashok Leyland Ltd. factories.

Supply and erection job on Turn-key basis undertaken as per client requirement.

Single Point Warranty & After Sales Service from Ashok Leyland Ltd. for all components of the Genset.
